Keys and parts

Explore the keys and parts of your new tablet.

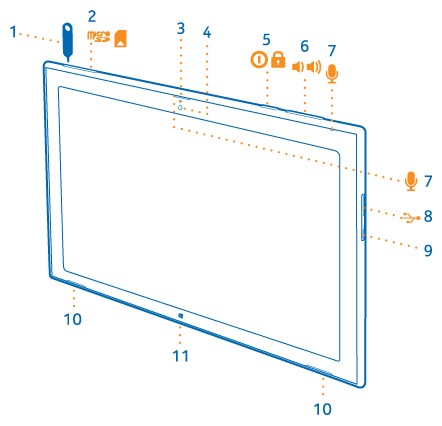

Items listed left
to right or top to bottom. On front of tablet: touch screen. Above
screen: front camera, microphones. On left edge: connector for headphones
and loudspeakers, charger connector. On top edge: Micro-SIM and memory
card holder, combined power and lock key, volume keys. On right edge:
Micro-USB 3.0 connector, Micro-HDMI connector. On bottom edge: dock
connector. Below screen: Windows button, loudspeakers.

1 - SIM door key

2 - Memory card and micro-SIM holder

3 - LED indicator light for front camera

4 - Front camera

5 - Power/Lock key

6 - Volume keys

7 - Microphones

8 - Micro-USB 3.0 connector

9 - Micro-HDMI connector

10 - Loudspeakers

11 - Windows button

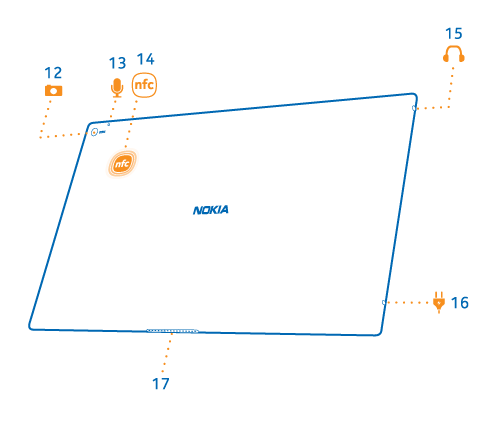

Items listed left
to right. With back of tablet facing you, at top left corner: camera
lens, microphone, NFC area.

12 - Camera

13 - Microphone

14 - NFC area

15 - Connector for headphones and loudspeakers (3.5 mm)

16 - Charger connector

17 - Keyboard dock
