Keys and parts

Explore the keys and parts of your new phone.

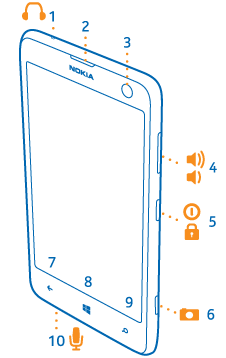

Items listed left
to right or top to bottom. On front of phone: touch screen. Above
screen: proximity sensor, front camera, earpiece. On top edge: connector
for headphones and loudspeakers. On right edge: volume keys, combined
power and lock key, camera key. Below screen: back key, start key,
search key.

1 - Connector for headphones and loudspeakers (3.5 mm)

2 - Earpiece

3 - Front camera

4 - Volume keys

5 - Power/Lock key

6 - Camera key

7 - Back key

8 - Start key

9 - Search key

10 - Microphone

Items listed left
to right or top to bottom. With back of phone facing you, at top:
camera flash, camera lens. At bottom: microphone, micro-USB connector,
loudspeaker.

11 - Camera flash

12 - Camera lens

13 - Loudspeaker

14 - Micro-USB connector. Also used to charge the battery.
