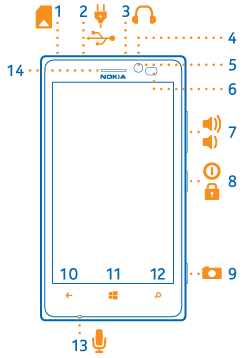

Explore the keys and parts of your new phone.

Items listed left
to right or top to bottom. On front of phone: touch screen. Above
screen: earpiece, front camera, combined proximity and ambient light
sensor. Below screen: back key, start key, search key. At bottom:
microphone. With front of phone
facing you, on top edge: micro-SIM card holder, micro-USB connector,
connector for headphones and loudspeakers. On right edge: volume keys,
combined power and lock key, camera key.

1 - Micro-SIM holder

2 - Micro-USB connector

3 - Connector for headphones and loudspeakers (3.5 mm)

4 - 2nd microphone

5 - Front camera

6 - Proximity/Light sensor

7 - Volume keys

8 - Power/Lock key

9 - Camera key

10 - Back key

11 - Start key

12 - Search key

13 - Microphone

14 - Earpiece

Items listed top
to bottom. With back of phone facing you: camera lens, wireless charging
connectors, loudspeaker.

15 - Camera flash

16 - Back camera

17 - Wireless charging connectors

18 - Loudspeaker

Some of the accessories mentioned in this user guide, such as charger, headset, or data cable, may be sold separately.
