Adding Exchange Rates using the AIF LedgerExchangeRateService Service

The following is a quick example that may help if you need to add an Exchange Rate to an existing Currency Pair in Microsoft Dynamics AX 2012 R3 using the AIF LedgerExchangeRateService service. I ran into a couple snags along the way and finally was able to insert data correctly in AX using the below. When you create the AIF Inbound Port for this service, I recommend to enable logging under the Troubleshooting section in case you need to review the XML that is created.

C# Console Application Example

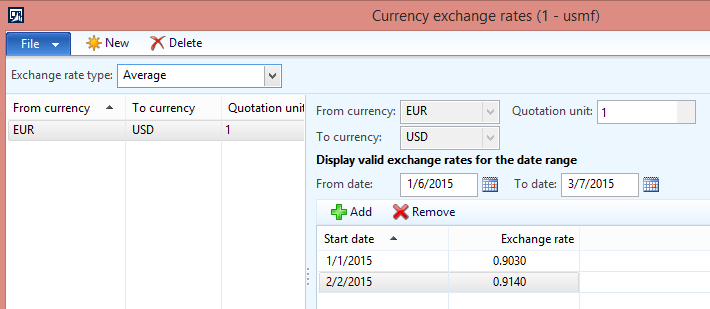

The goal in the support case was to add an Exchange Rate to at an already existing Currency Pair (EUR to USD) pair.



The code below adds a new Exchange Rate to this existing Currency Pair.

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

using UpdateExchangeRateTester.ERService;

namespace UpdateExchangeRateTester
    class Program
        static void Main(string[] args)
            ExchangeRateServiceClient proxy = new ExchangeRateServiceClient();

            CallContext cc = new CallContext();
            cc.Company = “USMF”;

            // Call Read First per
            //Criteria will be the From and To for the CurrencyPair (EUR to USD)
            QueryCriteria qc = new QueryCriteria();
            qc.CriteriaElement = new CriteriaElement[2];
            qc.CriteriaElement[0] = new CriteriaElement();
            qc.CriteriaElement[0].FieldName = “FromCurrencyCode”;
            qc.CriteriaElement[0].DataSourceName = “CurrencyPair”;
            qc.CriteriaElement[0].Value1 = “EUR”;
            qc.CriteriaElement[1] = new CriteriaElement();
            qc.CriteriaElement[1].FieldName = “ToCurrencyCode”;
            qc.CriteriaElement[1].DataSourceName = “CurrencyPair”;
            qc.CriteriaElement[1].Value1 = “USD”;
            EntityKey[] keylist = proxy.findKeys(cc, qc);
            AxdLedgerExchangeRate axdExchangeRate =, keylist);

            foreach (AxdEntity_CurrencyPair currencyPair in axdExchangeRate.CurrencyPair)
                currencyPair.action = AxdEnum_AxdEntityAction.update;
                currencyPair.actionSpecified = true;
                currencyPair.RateType = null; // do not send in a CurrencyPair RateType on updates
                //create new exchange rate
                AxdEntity_ExchangeRate newExchangeRate = new AxdEntity_ExchangeRate();
                newExchangeRate.ExchangeRate = 95.60M; //AX value is .95600
                newExchangeRate.ExchangeRateSpecified = true;
                newExchangeRate.ValidFrom = new DateTime(2015, 2, 5);
                newExchangeRate.ValidFromSpecified = true;
                newExchangeRate.action = AxdEnum_AxdEntityAction.create;
                newExchangeRate.actionSpecified = true;
                currencyPair.ExchangeRate = new AxdEntity_ExchangeRate[1] { newExchangeRate };


                proxy.update(cc, keylist, axdExchangeRate);
                Console.WriteLine(“Update Call Complete”);
            catch (Exception e)
                Console.WriteLine(“The AxdLedgerExchangeRate was not updated.”);

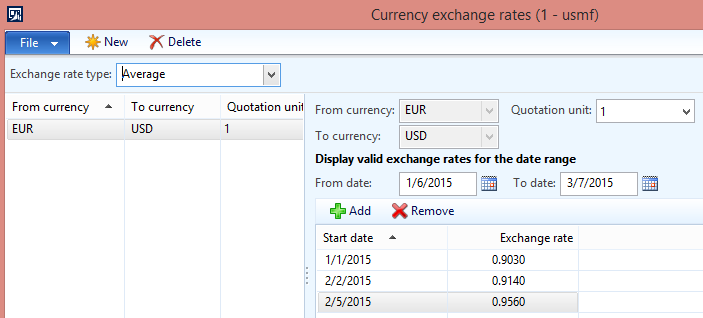

A couple items I had to do was set the RateType to null on the AxdEntity_CurrencyPair object otherwise I was receiving an AIF Exception on RateType. I also did not send the existing Exchange Rate data in the AxdEntity_ExchangeRate[] collection.I just created a new AxdEntity_ExchangeRate with the action property set to create. The final result looks like what I wanted to achieve with a new Exchange Rate added with correct dates:



XML Example

This is the XML document that AIF processes from the C# Console Application. You can use this as a starting point if you need to know what the XML schema should look like if you need to create XML for a File Adapter Inbound port.

<?xml version=”1.0″ encoding=”UTF-8″?>
<ExchangeRateServiceUpdateRequest xmlns=”“>
  <EntityKeyList xmlns=”“>
    <EntityKey xmlns=”“>
  <LedgerExchangeRate xmlns=”“>
    <ValidFromDateTime xsi:nil=”true” xmlns:xsi=””></ValidFromDateTime>
    <ValidToDateTime xsi:nil=”true” xmlns:xsi=””></ValidToDateTime>
    <CurrencyPair class=”entity” action=”update”>
      <ExchangeRate class=”entity” action=”create”>
