Rise in XorDdos: A deeper look at the stealthy DDoS malware targeting Linux devices

  • Microsoft 365 Defender Research Team

Updated September 12, 2022: New information has been added to the initial access and payload analysis sections in this blog, including details on a rootkit component that we found while investigating a XorDdos sample we saw in June 2022.

In the last six months, we observed a 254% increase in activity from a Linux trojan called XorDdos. First discovered in 2014 by the research group MalwareMustDie, XorDdos was named after its denial-of-service-related activities on Linux endpoints and servers as well as its usage of XOR-based encryption for its communications.

XorDdos depicts the trend of malware increasingly targeting Linux-based operating systems, which are commonly deployed on cloud infrastructures and Internet of Things (IoT) devices. By compromising IoT and other internet-connected devices, XorDdos amasses botnets that can be used to carry out distributed denial-of-service (DDoS) attacks. Using a botnet to perform DDoS attacks can potentially create significant disruptions, such as the 2.4 Tbps DDoS attack Microsoft mitigated in August 2021. DDoS attacks in and of themselves can be highly problematic for numerous reasons, but such attacks can also be used as cover to hide further malicious activities, like deploying malware and infiltrating target systems.

Botnets can also be used to compromise other devices, and XorDdos is known for using Secure Shell (SSH) brute force attacks to gain remote control on target devices. SSH is one of the most common protocols in IT infrastructures and enables encrypted communications over insecure networks for remote system administration purposes, making it an attractive vector for attackers. Once XorDdos identifies valid SSH credentials, it uses root privileges to run a script that downloads and installs XorDdos on the target device.

XorDdos uses evasion and persistence mechanisms that allow its operations to remain robust and stealthy. Its evasion capabilities include obfuscating the malware’s activities, evading rule-based detection mechanisms and hash-based malicious file lookup, as well as using anti-forensic techniques to break process tree-based analysis. We observed in recent campaigns that XorDdos hides malicious activities from analysis by overwriting sensitive files with a null byte. It also includes various persistence mechanisms to support different Linux distributions.

A diagram depicting a typical attack flow for XorDdos malware. The attacker communicates with a bot to SSH brute force a target device and download XorDdos. The malware then performs several techniques for evasion and persistence before connecting with the attacker's C2 server to send data and receive commands.
Figure 1. A typical attack vector for XorDdos malware

XorDdos may further illustrate another trend observed in various platforms, in which malware is used to deliver other dangerous threats. We found that devices first infected with XorDdos were later infected with additional malware such as the Tsunami backdoor, which further deploys the XMRig coin miner. While we did not observe XorDdos directly installing and distributing secondary payloads like Tsunami, it’s possible that the trojan is leveraged as a vector for follow-on activities.

Microsoft Defender for Endpoint protects against XorDdos by detecting and remediating the trojan’s multi-stage, modular attacks throughout its entire attack chain and any potential follow-on activities on endpoints. In this blog post, we detail our in-depth analysis of XorDdos to help defenders understand its techniques and protect their networks from this stealthy malware.

This blog post covers the following topics:

Initial access

XorDdos propagates primarily via SSH brute force. It uses a malicious shell script to try various root credential combinations across thousands of servers until finding a match on a target Linux device. As a result, we see many failed sign-in attempts on devices successfully infected by the malware:

Line chart depicting the increasing amount of failed sign-in attempts by a device infected by XorDdos.
Figure 2. Failed sign-in attempts on a device affected by XorDdos

Our analysis determined two of XorDdos’ methods for initial access. The first method involves copying a malicious ELF file to temporary file storage /dev/shm and then running it. Files written at /dev/shm are deleted during system restart, thus concealing the source of infection during forensic analysis.

The second method involves running a bash script that performs the following activities via the command line:

  1. Iterates the following folders to find a writable directory:
    • /bin
    • /home
    • /root
    • /tmp
    • /usr
    • /etc
  2. If a writable directory is found, changes the working directory to the discovered writable directory.
  3. Uses the curl command to download the ELF file payload from the remote location hxxp://Ipv4PII_777789ffaa5b68638cdaea8ecfa10b24b326ed7d/1[.]txt and saves the file as  ygljglkjgfg0.
  4. Changes the file mode to “executable”.
  5. Runs the ELF file payload.
  6. Moves and renames the Wget binary to evade rule-based detections triggered by malicious usage of the Wget binary. In this case, it renames the Wget binary to good and moves the file to the following locations:
    • mv /usr/bin/wget /usr/bin/good
    • mv /bin/wget /bin/good
  7. Attempts to download the ELF file payload for a second time, now only using the file good and not the Wget binary.
  8. After running the ELF file, uses an anti-forensic technique that hides its past activity by overwriting the content of the following sensitive files with a newline character:
Sensitive FileDescription
/root/.bash_historyContains the commands that were run earlier
/var/log/wtmpContains login related record for users
/var/log/btmpContains record of failed login attempt
/var/log/lastlogContains the recent login information for users
/var/log/secureContains information related to security such as logs for authentication failure, sudo logins, and authorization privileges
/var/log/boot.logContains information related to system boot and message logged via system startup processes
/var/log/cronContains information related to cron job launch, success and failure error logs
/var/log/dmesgContains information related to kernel ring buffer messages, hardware devices, drivers, etc.
/var/log/firewalldContains logs related to firewall activities
/var/log/maillogContains information related to a mail server running on the system
/var/log/messagesContains generic system activity messages
/var/log/spoolerContains messages from usenet
/var/log/syslogContains generic system activity messages
/var/log/yum.logContains the package logs related to installation\remove\update activities done via yum utility
Screenshot of the remote bash script command used for initial access
Figure 3. Remote bash script command used for initial access

Whichever initial access method is used, the result is the same: the running of a malicious ELF file, which is the XorDdos malware. In the next section, we do a deep dive into the XorDdos payload.

Other XorDdos variants that we recently saw in our investigations use this bash script installation method to either download or build its rootkit remotely. This installation method differentiates itself by matching the kernel build of the target device with the rootkit available on the attacker’s command and control (C2) server.

A XorDdos variant's attack chain where the malware checks if the rootkit that matches to the Linux OS version exists on its C2 server for download and installation on the affected device.
Figure 4. XorDdos variant attack flow

After enumerating the target device, the script communicates with the attacker’s C2 server, and checks if a rootkit that matches the kernel build of the target device exists on the server. If it finds an existing rootkit that matches with the target device, the script downloads the rootkit. The following steps initiate the matching and downloading of the XorDdos malware and rootkit:

  1. The bash script gets the target device’s kernel-related information using the following sequence of commands and sends it to the attacker’s server:
    • lsmod with tail to get the list of loaded Linux kernel modules
    • Modinfo extracts the vermagic number, a string containing information such as the kernel version number and CPU type used by the kernel module to load into kernel space. The vermagic number is gathered from the listed kernel modules.
  2. The vermagic string is sent to the attacker’s server in encoded form.

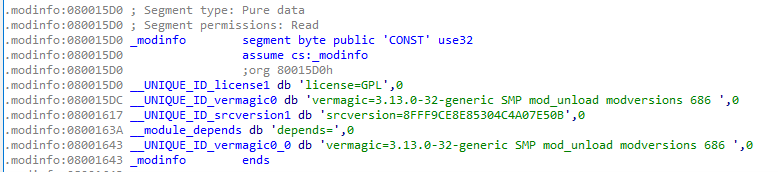

Command section screenshot where vermagic string in the rootkit is seen.
Figure 5. Screenshot of the ‘Modinfo’ command section that contains the ‘vermagic’ string in the rootkit
  1. If the rootkit binary specific to the kernel build exists on the server, it is downloaded along with the XorDdos ELF as a compressed .tar file.
  2. The .tar file is further uncompressed in a new directory named after the string obtained by encoding the MD5 hash of the vermagic string and created under the location /tmp on the target device. After the .tar file is uncompressed, the XorDdos ELF malware installs the XorDdos rootkit.

If the kernel build of the target device does not match any of the rootkits on the attacker’s server, the bash script initiates the following steps to build and compile the rootkit remotely:

  1. The bash script prepares archived Linux kernel headers in the /tmp directory.  Linux kernel headers are defining C-language public kernel APIs and data structures to enable compilation of 3rd party kernel modules.
  2. The bash script downloads and launches the ELF binary uploader in /tmp. This binary uses an HTTP POST request to upload the archived kernel headers to the attacker’s server.
  3. The ELF binary removes the uploader component from /tmp to minimize XorDdos’ footprint.
  4. The uploaded archived kernel headers are used on the C2 server to build and compile the rootkit component. Thus, the newly built rootkit component becomes available for download from the C2 server, also making it available for other future infections.
  5. The bash script then initiates the prior set of steps to download and install the XorDdos ELF malware, which installs the rootkit into the target device.

XorDdos payload analysis

The XorDdos payload we analyzed for this research is a 32-bit ELF file that was not stripped, meaning it contained debug symbols that detailed the malware’s dedicated code for each of its activities. The inclusion of debug symbols makes it easier to debug and reverse engineer non-stripped binaries, as compared to stripped binaries that discard these symbols. In this case, the non-stripped binary includes the following source-code file names associated with the symbol table entries as part of the .strtab section in the ELF file:

  • crtstuff.c
  • autorun.c
  • crc32.c
  • encrypt.c
  • execpacket.c
  • buildnet.c
  • hide.c
  • http.c
  • kill.c
  • main.c
  • proc.c
  • socket.c
  • tcp.c
  • thread.c
  • findip.c
  • dns.c

The above list of source-code file names indicate that the binary is programmed in C/C++ and that its code is modular.

Detection evasion capabilities

XorDdos contains modules with specific functionalities to evade detection, as detailed below.

Daemon processes

A daemon process is a process that runs in the background rather than under the control of users and detaches itself from the controlling terminal, terminating only when the system is shut down. Similar to some Linux malware families, the XorDdos trojan uses daemon processes, as detailed below, to break process tree-based analysis:

  1. The malware calls the subroutine daemon(__nochdir, __noclose) to set itself as a background daemon process, which internally calls fork() and setsid(). The fork() API creates a new child process with the same process group-id as the calling process.
  2. After the successful call to the fork() API, the parent stops itself by returning “EXIT_SUCCESS (0)”. The purpose is to ensure that the child process is not a group process leader, which is a prerequisite for the setsid() API call to be successful. It then calls setsid() to detach itself from the controlling terminal.
  3. The daemon subroutine also has a provision to change the directory to the root directory (“/“) if the first parameter __nochdir is called with a value equal to “0”. One reason for the daemon process to change the directory to the root partition (“/“)is because running the process from the mounted file system prevents unmounting unless the process is stopped.
  4. It passes the second parameter __noclose as “0” to redirect standard input, standard output, and standard error to /dev/null. It does this by calling dup2 on the file descriptor for /dev/null.
  5. The malware calls multiple signal APIs to ignore a possible signal from the controlling terminal and detach the current process from the standard stream and HangUp signals (SIGHUP) when the terminal session is disconnected. Performing this evasive signal suppression helps stop the effects of standard libraries trying to write to standard output or standard error, or trying to read from standard input, which could stop the malware’s child process. The API signal() sets the disposition of the signal signum to the handler, which is either SIG_IGN, SIG_DFL, or the address of a programmer-defined signal handler. In this case, the second parameter is set to “SIG_IGN=1”, which ignores the signal corresponding to signum.
Screenshot of how signals associated with terminal-related operations are ignored.
Figure 6. Ignore signals associated with the terminal-related operations

XOR-based encryption

As its name suggests, XorDdos uses XOR-based encryption to obfuscate data. It calls the dec_conf function to decode encoded strings using the XOR key “BB2FA36AAA9541F0”. The table below shows the decoded values of the obfuscated data used across the malware’s various modules to conduct its activities.

Encrypted stringsDecoded value
m7A4nQ_/nA/usr/bin/
m [(n3/bin/
m6_6n3/tmp/
m4S4nAC/n&ZV\x1aA/TB/var/run/gcc.pid
m.[$n__#4%\C\x1aB]0/lib/libudev.so
m.[$n3/lib/
m4S4nAC/nA/var/run/
!#Ff3VE.-7\x17V[_cat resolv.conf
<Encrypted_Remote_URL>hxxp://aa.hostasa[.]org/config.rar

Process name spoofing

When a process is launched, arguments are provided to its main function as null-terminated strings, where the first argument is always the process image path. To spoof its process name, XorDdos zeroes out all argument buffers while running and overrides its first argument buffer containing the image path with a fake command line, such as cat resolv.conf.

Diagram displaying how process name spoofing is achieved by modifying memory associated with argument vectors.
Figure 7. Process name spoofing achieved by modifying memory associated with argument vectors.
Screenshot of the output of the 'ps -aef' containing an entry for "cat resolv.conf".
Figure 8. Output of the ‘ps -aef’ contains an entry for “cat resolv.conf”

Kernel rootkit

Some XorDdos samples install a kernel rootkit, while others embed the rootkit in the XorDdos binary. Upon execution, the XorDdos binary drops the embedded rootkit component into the disk.

A rootkit is a kernel module that hides the presence of malicious code by modifying kernel data structures. The XorDdos kernel rootkit generally has the following capabilities:

  • Provide root access
  • Hide the kernel module
  • Hide the malware’s processes
  • Hide the malware’s network connections and ports

Based on the debug symbols found in the rootkit, it’s likely that XorDdos’ rootkit code was inspired by open-source projects like Suterusu and Rooty.

XorDdos attempts to hide itself by invoking its rootkit. The user mode malware calls the function getself(), which invokes readlink() to fetch the location of the malware file image on disk.

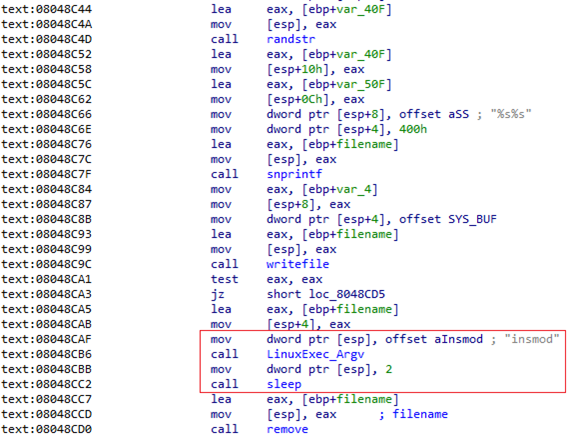

Screenshot of XorDdos' code it uses for self-replication.
Figure 9. Code used by XorDdos for self-replication.

After this step, the malware tries to read the contents of its image file and loads it into a memory buffer, then sends a request to unhide() the process and deletes the image on disk. The technique allows XorDdos to bypass detection or minimize its malicious footprint.

The XorDdos rootkit parses the in-kernel list of loaded modules to remove itself and the protected malware from the list. This approach prevents tools like Ismod from listing kernel-loaded modules.

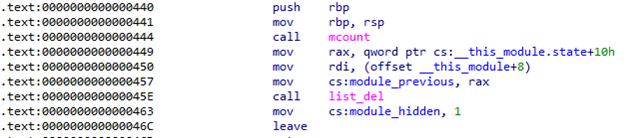

Code screenshot of the rootkit's ability to list loaded modules and remove itself and the XorDdos malware from the list.
Figure 10. __this_module refers to the current module that list_del tries to hide.

The following table describes the symbols found in the rootkit and their corresponding functionalities:

Function name  Description
give_root  Provides a root privilege by setting a new set of credentials and assigning its UID, GID to “0”
module_hideHides the rootkit kernel module
module_showUnhides the rootkit kernel module
get_udp_seq_showHides the UDP4 connection by hooking /proc/net/udpHides the UDP6 connection by hooking /proc/net/udp6
get_tcp_seq_showHides the TCP4 connection by hooking /proc/net/tcpHides the TCP6 connection by hooking /proc/net/tcp6
hide_udp4_portAdds a provided port to a list of hidden UDP4 ports
unhide_udp4_portDeletes a provided port from a list of hidden UDP4 ports
hide_udp6_portAdds a provided port to a list of hidden UDP6 ports
unhide_udp6_portDeletes a provided port from a list of hidden UDP6 ports
hide_tcp4_portAdds a provided port to a list of hidden TCP4 ports
unhide_tcp4_portDeletes a provided port from a list of hidden TCP4 ports
hide_tcp6_portAdds a provided port to a list of hidden TCP6 ports
unhide_tcp6_portDeletes a provided port from a list of hidden TCP6 ports
unhide_allzIterates list of all hidden ports and deletes all entries
firewall_acceptipAdds an IP address provided to accept_ips list
unfirewall_acceptipDeletes a provided entry from accept_ips list
firewall_dropipAdds a provided IP address to drop_ips list
unfirewall_dropipDeletes a provided IP address to drop_ips list
hide_procAdds a provided entry to hidden_procs list
unhide_procDeletes a provided entry to hidden_procs list

Process and port hiding

The malware tries to hide its processes and ports using its kernel rootkit component. Hiding a process assists the malware in evading rule-based detections.

The /proc filesystem contains information related to all running processes. A user-mode process can get any process specific information by reading the /proc directory that contains the subdirectory for each running process on the system, such as:

  • /proc/7728 – Contains process-id (PID) 7728-related information
  • /proc/698 – Contains PID 698-related information

Running the strace -e open ps command checks the traces of the open call on /proc/$pid to fetch information on running processes as part of the ps command.

> strace -e open ps
open(“/proc/3922/status”, O_RDONLY)     = 6
open(“/proc/4324/stat”, O_RDONLY)       = 6
open(“/proc/4324/status”, O_RDONLY)     = 6
open(“/proc/5559/stat”, O_RDONLY)       = 6
open(“/proc/5559/status”, O_RDONLY)     = 6
open(“/proc/5960/stat”, O_RDONLY)       = 6
open(“/proc/5960/status”, O_RDONLY)     = 6
open(“/proc/5978/stat”, O_RDONLY)       = 6
open(“/proc/5978/status”, O_RDONLY)     = 6

If the malware hides the $pid specific directory, it can conceal fetching the corresponding process from a user mode.

In this case, the malware has a provision for communicating with its rootkit component /proc/rs_dev by sending input and output control (IOCTL) calls with additional information to take appropriate action. IOCTL is one way to communicate between the user-mode service and kernel device driver. The malware uses the number “0x9748712” to uniquely identify its IOCTL calls from other IOCTL calls in the system.

Along with this number, it also passes an integer array. The first entry in the array corresponds to the command, and the second entry stores the value to act on, such as $pid.

CommandUsage
0Check if its rootkit driver is present
1, 2Hide or unhide <PID>
3Hide <port>

Hiding network connections

The rootkit also leverages kernel hooking to disrupt the regular invocation of various kernel system calls by substituting the original system call handler in the sys_call_table with its own. The hook functions ensure that the events associated with XorDdos’s malicious activity are filtered out, thus evading detection.

The /proc/net interface provides information about currently active TCP connections and is implemented by kernel APIs tcp4_seq_show() and tcp6_seq_show() .

Utilities, such as netstat, acquire TCP/UDP connection information from files named /proc/net/tcp and /proc/net/udp. These files contain one entry per line, each indicating the source and destination port, the source and destination IP addresses, and other relevant information about the active connection.

The rootkit replaces the default read() system call with hook functions, filters the file read entries, and skips the port it intends to hide, further obfuscating C2 communications.

The following table lists kernel APIs and their hook names used by the rootkit:

Kernel APIHooked function by rootkitFunction description
tcp4_seq_show()n_tcp4_seq_show()Hiding /proc/net/tcp, TCPv4 connection
tcp6_seq_show()n_tcp6_seq_show()Hiding /proc/net/tcp6, TCPv6 connection
udp4_seq_show()n_ udp4_seq_show()Hiding /proc/net/udp, UDPv4 connection
Udp6_seq_show()n_ udp6_seq_show()Hiding /proc/net/udp6, UDPv4 connection

Persistence mechanisms

XorDdos uses various persistence mechanisms to support different Linux distributions when automatically launching upon system startup, as detailed below.

Init script

The malware drops an init script at the location /etc/init.d. Init scripts are startup scripts used to run any program when the system starts up. They follow the Linux Standard Base (LSB)-style header section to include default runlevels, descriptions, and dependencies.

Screenshot of the content of the init script dropped at the location /etc/init.d/HFLgGwYfSC.elf.
Figure 11. Content of the init script dropped at the location /etc/init.d/HFLgGwYfSC.elf

Cron script

The malware creates a cron script at the location /etc/cron.hourly/gcc.sh.The cron script passes parameters with the following content:

Screenshot of the contents of the gcc.sh script.
Figure 12. Content of the gcc.sh script

It then creates a /etc/crontab file to run /etc/cron.hourly/gcc.sh every three minutes:

Screenshot displaying the system command to delete the /etc/cron.hourly/gcc.sh entry from /etc/crontab file and add a new entry. It reads "system("sed -i \'/\\/etc\\/cron.hourly\\/gcc.sh/d\' /etc/crontab && echo \'*/3 * * * * root /etc/cron.hourly/gcc.sh\' >> /etc/crontab");
Figure 13. System command to delete the /etc/cron.hourly/gcc.sh entry from the /etc/crontab file and add a new entry
Screenshot of a command that reads :*/3 * * * * root /etc/cron.hourly/gcc.sh"
Figure 14. The content of the file /etc/crontab

System V runlevel

A runlevel is a mode of init and the system that specifies what system services are operating for Unix System V-Style operating systems. Runlevels contain a value, typically numbered zero through six, which each designate a different system configuration and allows access to a different combination of processes. Some system administrators set a system’s default runlevel according to their needs or use runlevels to identify which subsystems are working, such as whether the network is operational. The /etc/rc<run_level> directory contains symbolic links (symlinks), which are soft links that point to the original file. These symlinks point to the scripts that should run at the specified runlevel.

The malware creates a symlink for the init script dropped at the location /etc/init.d/<base_file_name> with the directories associated with runlevels 1 through 5 at /etc/rc<run_level>.d/S90<base_file_name> and /etc/rc.d/rc<run_level>.d/S90<base_file_name>.

Screenshot displaying the installation of rc.d directory's symlink scripts with /etc/init.d/<base_file_name>.
Figure 15. Installation of rc.d directory’s symlink scripts with /etc/init.d/<base_file_name>

Auto-start services

The malware runs a command to install startup services that automatically run XorDdos at boot. The malware’s LinuxExec_Argv2 subroutine runs the system API with the provided arguments.

The commands chkconfig –add <service_name> and update-rc.d then add a service that starts the daemon process at boot.

Screenshot displaying chkconfig and update-rc.d commands installing the startup service
Figure 16. chkconfig and update-rc.d commands install the startup service

Argument-based code-flow

XorDdos has specific code paths corresponding to the number of arguments provided to the program. This flexibility makes its operation more robust and stealthy. The malware first runs without any argument and then later runs another instance with different arguments, such as PIDs and fake commands, to perform capabilities like clean-up, spoofing, and persistence.

Before handling the argument-based control, it calls the readlink API with the first parameter as /proc/self/exe to fetch its full process path. The full path is used later to create auto-start service entries and read the file’s content.

In this section, we will cover the main tasks carried out as part of the different arguments provided:

1: Standard code path without any provided arguments

This code path depicts the malware’s standard workflow, which is also the typical workflow where XorDdos runs as part of the entries created in system start-up locations.

The malware first checks whether it’s running from the locations /usr/bin/, /bin/, or /tmp/. If it’s not running from these locations, then it creates and copies itself using a 10-character string name on those locations, as well as /lib/ and /var/run/.

It also creates a copy of itself at the location /lib/libudev.so. To evade hash-based malicious file lookup, it performs the following steps, which modify the file hash to make every file unique:

  • Opens the file for writing only
  • Calls lseek (fd, 0, SEEK_END) to point at the last position in the file
  • Creates a random 10-character string
  • Writes the string at the end of the file with an additional null byte

After modifying the file, it runs the binary, performs a double fork(), and deletes its file from the disk.

Screenshot displaying the end of the malware file containing two random strings, ‘wieegnexuk’ and ‘yybrdajydg,’ indicating that the original malware binary was modified twice
Figure 17. The end of the malware file contains two random strings, ‘wieegnexuk’ and ‘yybrdajydg,’ indicating that the original malware binary was modified twice

2: Clean-up code path

In this code path, the malware runs with another argument provided as the PID, for example:

  • /usr/bin/jwvwvxoupv 4849

Using the above example, the malware shares the 64-byte size memory segment with the IPC key “0xDA718716” to check for another malware process provided as an argument. If not found, it runs its own binary without any argument and calls the fork() API twice to make sure the grandchild process has no parent. This results in the grandchild process being adopted by the init process, which disconnects it from the process tree and acts as an anti-forensic technique.

Additionally, it performs the following tasks on a provided $pid:

  • Fetches the process file name corresponding to the provided $pid
  • Deletes the file for the provided $pid
  • Deletes the installed init services:
    • Deletes /etc/init.d/<file_name>
    • For runlevels 1-5, unlinks and deletes /etc/rc<runlevel>.d/S90<file_name>
    • Performs the command chkconfig –del <file_name>
    • Performs the command update-rc.d <file_name> remove
  • Ends the process that was provided as an argument.

3: Process name spoofing code path

The malware spawns new dropped binaries with two additional arguments: a fake command line and its PIDs, for example:

  • /usr/bin/jwvwvxoupv “cat resolv.conf” 4849
  • /usr/bin/jwvwvxoupv gnome-terminal 4849
  • /usr/bin/jwvwvxoupv top 4849
  • /usr/bin/jwvwvxoupv pwd 4849
  • /usr/bin/kagbjahdic id 4849

The fake commands can include:

  • cat resolv.conf
  • netstat -an
  • bash
  • whoami
  • id
  • cd /etc
  • ifconfig eth0
  • ifconfig
  • echo “find”
  • uptime
  • sh
  • top
  • gnome-terminal
  • su
  • netstat -antop
  • grep “A”
  • who
  • ls -la
  • pwd
  • route -n
  • ps -ef
  • ls
  • sleep 1

In this code path, the malware uses process name spoofing to hide from the process tree by modifying its fake command line at runtime. It then hides its process by calling HidePidPort with command “1” and reads the content of the file on disk related to the current process.

It then enters a five-second loop to perform the following checks:

  • Fetches the file name specific to the $pid provided as part of the third argument by calling the readlink API on /proc/$pid/exe.
  • If the readlink call fails, that likely indicates that the file on disk doesn’t exist. In this case, it:
    • Intends to delete all service-related entries for the $pid but fails. This appears to be due to a code flaw that allows a zeroed-out buffer to be passed as a service name when the buffer is supposed to be filled from a successful readlink API call.
    • Creates directories similar to the standard code path scenario.
    • Calls the stat API for the file /lib/libudev.so. If the stat API returns a non-zero value, then it attempts to copy the content of the current process’s image-file fetched earlier to the following locations with a random name:
      • /usr/bin/
      • /bin/
      • /tmp/
    • Copies the /lib/libudev.so file to the same three directories listed above if the stat API call is successful on /lib/libudev.so.
    • Changes the hash of the written or copied file and then runs it without passing any parameters.
  • If the readlink call is successful and returns the count of bytes copied, sleeps for one second and then loops for the remaining time out of five seconds.
  • Unhides the current process and the $pid that was provided as part of the third argument.
  • Deletes the on-disk file for the current process.

4: Known locations code path without any provided arguments

This code path is similar to the standard code path, with the main difference being that the malware runs from one of the following locations:

  • /usr/bin/
  • /bin/
  • /tmp/

Once it runs from one of these locations, the malware calls the following functions to perform various tasks:

  1. InstallSYS – this function sets up the rootkit by extracting it under /usr/bin folder using a random name and loading it into the kernel.
Screenshot of the randomly-named files the XorDdos rootkit extracts to the /usr/bin folder.
Figure 18. Dropped files with random string names in /usr/bin

As mentioned in the XOR-based encryption section, the encoded string m7A4nQ_/nA translates to the folder path /usr/bin when decoded with the multi-byte key 0xBB2FA36AAA9541F0. The /usr/bin folder path is where the rootkit is dropped.

The dropped rootkit is further inserted into the Linux kernel module using the insmod command. This is followed by the removal of the dropped rootkit from the disk.

Screenshot of the insmod command calling functions to drop the XorDdos rootkit into the Linux kernel.
Figure 19. Screenshot of the XorDdos binary code where the highlighted insmod command calls functions to drop the rootkit into the Linux kernel module.

XorDdos uses /proc/rs_dev character device to communicate with the rootkit. It calls the CheckLKM() function to see if the rootkit meets the installation requirements, such as an exact kernel header match and no technologies present that can block the rootkit’s installation, like secure boot or enforced signed loadable kernel module (LKM) loading.

Screenshot of the code where the XorDdos binary uses the /proc/rs_dev device handle to access the rootkit.
Figure 20. The rootkit becomes accessible to the XorDdos malware by using the device handle /proc/rs_dev.

XorDdos attempts to open /proc/rs_dev. If the Linux kernel module interface is up, XorDdos sends an IOCTL request with the unique identifier 0x9748712 with argument “0” to open two-way communication between the XorDdos binary and its rootkit.

  1. AddService – Creates the persistent auto-start entries previously mentioned so that the malware runs when the system starts.
  2. HidePidPort – Hides the malware’s ports and processes.
  3. CheckLKM – Checks whether the rootkit device is active or not, and to see if the rootkit meets the installation requirements, such as an exact kernel header match and no secure boot or other technologies that can block the rootkit’s installation. It uses a similar IOCTL call with the number “0x9748712” and command “0” to find if the rootkit is active. If the rootkit is active, it uses the owner value “0xAD1473B8” and group value “0xAD1473B8” to change the ownership of dropped files with the function lchown(<filename>, 0xAD1473B8, 0xAD1473B8).
  4. decrypt_remotestr – Decodes remote URLs using the same XOR key, “BB2FA36AAA9541F0”, to decode config.rar and the other directories. After decoding the URLs, it adds them into a remote list, which is later used to communicate and fetch commands from the command and control (C2) server:
    • www[.]enoan2107[.]com:3306
    • www[.]gzcfr5axf6[.]com:3306

Malicious activity threads

After creating persistent entries, deleting evidence of its activities, and decoding config.rar, the malware initializes a cyclic redundancy check (CRC) table followed by an unnamed semaphore using the sem_init API. This semaphore is initialized with apshared value set to “0”, making the resultant semaphore shared between all the threads. The semaphore is used to maintain concurrency between threads accessing a shared object, such as kill_cfg data.

The malware then initializes three threads to perform malicious activities, such as stopping a process, creating a TCP connection, and retrieving kill_cfg data.

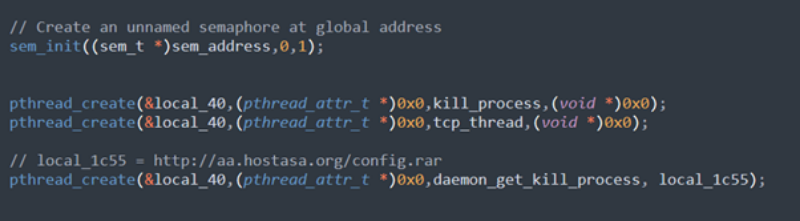

Screenshot displaying the semaphore and malicious thread initialization
Figure 21. Semaphore and malicious thread initialization

 kill_process

The kill_process thread performs the following tasks:

  • Decodes encrypted strings
  • Fetches file stats for /var/run/gcc.pid or, if none exist, then creates the file
  • Fetches file stats for /lib/libudev.so or, if none exist, then creates the directory /lib and creates a copy of itself at the location /lib/libudev.so
  • Fetches the on disk file information associated with the current process; if it fails, then exits the loop and stops the current process
  • Reads the content from kill_cfg and performs the corresponding actions, like stopping the process or deleting files, based on the matching specified keys in the configuration file, such as:
    • md5=
    • filename=
    • rmfile=
    • denyip=

tcp_thread

The tcp_thread triggers the connection with the C2 server decoded earlier using decrypt_remotestr(). It performs the following tasks:

  • Reads the content of the file /var/run/gcc.pid to get a unique 32-byte magic string that identifies the device while connecting with the C2 server; if the file doesn’t exist, then it creates the file and updates it with a random 32-byte string.
  • Calculates the CRC header, including details of the device such as the magic string, OS release version, malware version, rootkit presence, memory stats, CPU information, and LAN speed.
  • Encrypts the data and sends it to the C2 server.
  • Waits to receive any of the following commands from the C2 server and then acts on the command using the exec_packet subroutine.
CommandJob
2Stop
3Create a thread pool for launching DDoS attacks
6Download file
7Update file
8Send system information to the C2 server
9Get configuration file to stop processes

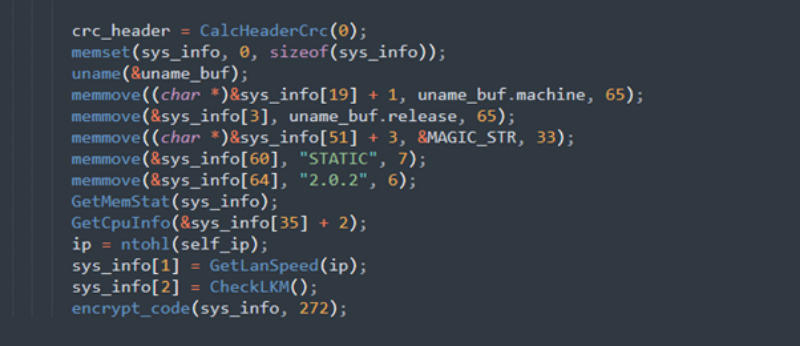

Screenshot displaying code for the collection of system information.
Figure 22. Collection of system information

daemon_get_killed_process

The daemon_get_killed_processthread downloads the kill_cfg data from the remote URL decoded earlier (hxxp://aa[.]hostasa[.]org/config[.]rar) and decrypts it using the same XOR key previously mentioned. It then sleeps for 30 minutes.

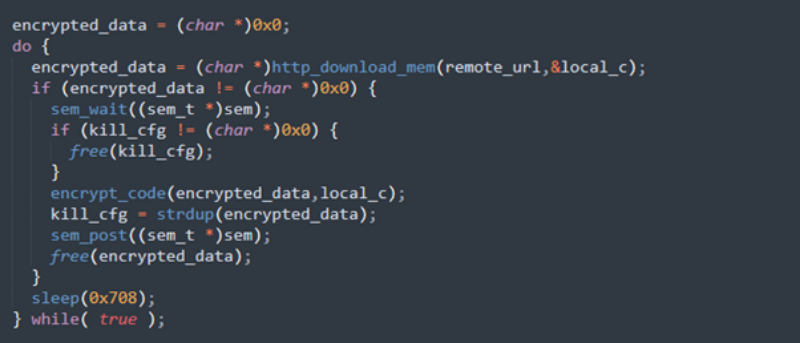

Screenshot displaying code for the daemon_get_killed_process thread function fetching and decoding the kill_cfg data from remote URL.
Figure 23. daemon_get_killed_process thread function fetches and decodes the kill_cfg data from the remote URL

DDoS attack thread pool

The malware calls sysconf(_SC_NPROCESSORS_CONF) to fetch the number of processors in the device. It then creates threads with twice the number of processors found on the device.

Invoking each thread internally calls the thread routine threadwork. Using the global variable “g_stop” and commands received from the C2 server, threadwork then sends crafted packets 65,535 times to perform a DDoS attack.

CommandFunctionJob
0x4fix_syn  SYN flood attack
0x5fix_dns  DNS attack
0xAfix_ack  ACK flood attack

Defending against Linux platform threats

XorDdos’ modular nature provides attackers with a versatile trojan capable of infecting a variety of Linux system architectures. Its SSH brute force attacks are a relatively simple yet effective technique for gaining root access over a number of potential targets.

Adept at stealing sensitive data, installing a rootkit device, using various evasion and persistence mechanisms, and performing DDoS attacks, XorDdos enables adversaries to create potentially significant disruptions on target systems. Moreover, XorDdos may be used to bring in other dangerous threats or to provide a vector for follow-on activities.

XorDdos and other threats targeting Linux devices emphasize how crucial it is to have security solutions with comprehensive capabilities and complete visibility spanning numerous distributions of Linux operating systems. Microsoft Defender for Endpoint offers such visibility and protection to catch these emerging threats with its next-generation antimalware and endpoint detection and response (EDR) capabilities. Leveraging threat intelligence from integrated threat data, including client and cloud heuristics, machine learning models, memory scanning, and behavioral monitoring, Microsoft Defender for Endpoint can detect and remediate XorDdos and its multi-stage, modular attacks. This includes detecting and protecting against its use of a malicious shell script for initial access, its drop-and-execution of binaries from a world-writable location, and any potential follow-on activities on endpoints.

Defenders can apply the following mitigations to reduce the impact of this threat:

  • Encourage the use of Microsoft Edge—available on Linux and various platforms—or other web browsers that support Microsoft Defender SmartScreen, which identifies and blocks malicious websites, including phishing sites, scam sites, and sites that contain exploits and host malware.
  • Use device discovery to find unmanaged Linux devices on your network and onboard them to Microsoft Defender for Endpoint.
  • Turn on cloud-delivered protection in Microsoft Defender Antivirus or the equivalent for your antivirus product to use cloud-based machine learning protections that can block a huge majority of new and unknown variants.
  • Run EDR in block mode so that Microsoft Defender for Endpoint can block malicious artifacts, even when your non-Microsoft antivirus doesn’t detect the threat or when Microsoft Defender Antivirus is running in passive mode.
  • Enable network protection to prevent applications or users from accessing malicious domains and other malicious content on the internet.
  • Enable investigation and remediation in full automated mode to allow Microsoft Defender for Endpoint to take immediate action on alerts to resolve breaches, significantly reducing alert volume.

As threats across all platforms continue to grow in number and sophistication, security solutions must be capable of providing advanced protection on a wide range of devices, regardless of the operating system in use. Organizations will continue to face threats from a variety of entry points across devices, so Microsoft continues to heavily invest in protecting all the major platforms and providing extensive capabilities that organizations needed to protect their networks and systems.

Detection details

Microsoft Defender for Endpoint detects and blocks XorDdos’s installer script and rootkit binary as the following malware:

  • DoS:Linux/Xorddos.A
  • DoS:Linux/Xorddos!rfn
  • Trojan:Linux/Xorddos
  • Trojan:Linux/Xorddos.AA
  • Trojan:Linux/Xorddos!rfn
  • Behavior:Linux/Xorddos.A
  • Backdoor:Linux/XorDDoSRootkit.A
  • Trojan:SH/XorDDoSinstaller.A

When XorDdos is detected on a device, Microsoft 365 Defender raises an alert, which shows the complete attack chain, including the process tree, file information, user information, and prevention details.

Screenshot of the Microsoft 365 Defender alert upon detection of XorDdos malware in an environment.
Figure 24. Microsoft 365 Defender alert for detection of XorDdos malware

The timeline view displays all of the detection and prevention events associated with XorDdos, providing details such as the MITRE ATT&CK techniques and tactics, remediation status, and event entities graph.

Screenshot of the Microsoft 365 Defender timeline showing where the malicious .elf file was run and the succeeding remediation of the dropped binaries.
Figure 25. Microsoft 365 Defender timeline displaying that HFLgGwYfSC.elf was run from a world-writable directory and the remediation of dropped binaries

Events with the following titles indicate threat activity related to XorDdos:

  • The content of libudev.so was collected into libudev.so.6
  • bash process performed System Information Discovery by invoking ifconfig
  • gcc.sh was executed after being dropped by HFLgGwYfSC.elf
  • A shell command was executed by crond
  • SUID/SGID process unix_chkpwd executed
Screenshot of the Microsoft 365 Defender timeline showing the alert where a suspicious shell command run by crond was dropped from the malicious .elf.
Figure 26. Microsoft 365 Defender timeline with an event on a suspicious shell command run by crond after it was dropped from HFLgGwYfSC.elf

Hunting queries

To locate malicious activity related to XorDdos activity, run the following advanced hunting queries in Microsoft 365 Defender or Microsoft Defender Security Center:

Failed sign-ins

DeviceLogonEvents
| where InitiatingProcessFileName == "sshd"
    and ActionType == "LogonFailed"
| summarize count() by dayOfYear = datetime_part("dayOfYear", Timestamp)
| sort by dayOfYear
| render linechart

Creation of the XorDdos-specific dropped files

DeviceFileEvents
| extend FullPath=strcat(FolderPath, FileName)
| where FullPath in ("/etc/cron.hourly/gcc.sh", "/lib/libudev.so.6", "/lib/libudev.so", "/var/run/gcc.pid")

Command-line of malicious process

DeviceProcessEvents
| where ProcessCommandLine contains "cat resolv.conf"

Indicators

File information

File name:HFLgGwYfSC.elf
File size:611.22 KB (625889 bytes)
Classification:DoS:Linux/Xorddos.A
MD5:2DC6225A9D104A950FB33A74DA262B93
Sha1:F05194FB2B3978611B99CFBF5E5F1DD44CD5E04B
Sha256:F2DF54EB827F3C733D481EBB167A5BC77C5AE39A6BDA7F340BB23B24DC9A4432
File type:ELF 32-bit LSB executable, Intel 80386, version 1 (SYSV), statically linked, for GNU/Linux 2.6.9, not stripped
First submission in VT:2022-01-25 05:32:10 UTC

Dropped files

Dropped file pathFile typeSHA-256
/etc/init.d/HFLgGwYfSC.elfShell Script6E506F32C6FB7B5D342D1382989AB191C6F21C2D311251D8F623814F468952CF
/etc/cron.hourly/gcc.shShell ScriptCBB72E542E8F19240130FC9381C2351730D437D42926C6E68E056907C8456459
/lib/libudev.soELFF2DF54EB827F3C733D481EBB167A5BC77C5AE39A6BDA7F340BB23B24DC9A4432
/run/gcc.pidText932FEEF3AB6FCCB3502F900619B1F87E1CB44A7ADAB48F2C927ECDD67FF6830A
/usr/bin/djtctpzfdqELF53F062A93CF19AEAA2F8481B32118A31B658A126624ABB8A7D82237884F0A394
/usr/bin/dmpyuitfoqELF798577202477C0C233D4AF51C4D8FB2F574DDB3C9D1D90325D359A84CB1BD51C
/usr/bin/fdinprytpqELF2B4500987D50A24BA5C118F506F2507362D6B5C63C80B1984B4AE86641779FF3
/usr/bin/jwvwvxoupvELF359C41DA1CBAE573D2C99F7DA9EEB03DF135F018F6C660B4E44FBD2B4DDECD39
/usr/bin/kagbjahdicELFE6C7EEE304DFC29B19012EF6D31848C0B5BB07362691E4E9633C8581F1C2D65B
/usr/bin/kkldnszwvqELFEF0A4C12D98DC0AD4DB86AADD641389C7219F57F15642ED35B4443DAF3FF8C1E
/usr/bin/kndmhuqmahELFB5FBA27A8E457C1AB6573C378171F057D151DC615D6A8D339195716FA9AC277A
/usr/bin/qkxqoelrfaELFD71EA3B98286D39A711B626F687F0D3FC852C3E3A05DE3F51450FB8F7BD2B0D7
/usr/bin/sykhrxsazzELF9D6F115F31EE71089CC85B18852974E349C68FAD3276145DAFD0076951F32489
/usr/bin/tcnszvmpqnELF360A6258DD66A3BA595A93896D9B55D22406D02E5C02100E5A18382C54E7D5CD
/usr/bin/zalkpggsghELFDC2B1CEE161EBE90BE68561755D99E66F454AD80B27CEBE3D4773518AC45CBB7
/usr/bin/zvcarxfqukELF175667933088FBEBCB62C8450993422CCC876495299173C646779A9E67501FF4
/tmp/bin/3200ELF (rootkit)C8F761D3EF7CD16EBE41042A0DAF901C2FDFFCE96C8E9E1FA0D422C6E31332EA
Installer scriptBash script8be8c950d8701ef1149c547ea3f949ea78394787ad1e19fc0eaa7bd7aeb863c2
/usr/bin/djtctpzfdqELF53f062a93cf19aeaa2f8481b32118a31b658a126624abb8a7d82237884f0a394
/usr/bin/jwvwvxoupvELF359c41da1cbae573d2c99f7da9eeb03df135f018f6c660b4e44fbd2b4ddecd39
/usr/bin/kkldnszwvqELFef0a4c12d98dc0ad4db86aadd641389c7219f57f15642ed35b4443daf3ff8c1e
/usr/bin/zvcarxfqulELF (rootkit)483451dcda78a381cc73474711bf3fcae97bd088f67b5a7e92639df52ef5ef25
/usr/bin/zvzvmpqnvELF (rootkit)c8f761d3ef7cd16ebe41042a0daf901c2fdffce96c8e9e1fa0d422c6e31332ea

Download URLs

  • www[.]enoan2107[.]com:3306
  • www[.]gzcfr5axf6[.]com:3306
  • hxxp://aa[.]hostasa[.]org/config.rar

Ratnesh Pandey, Yevgeny Kulakov, and Jonathan Bar Or
with Saurabh Swaroop
Microsoft 365 Defender Research Team
