Even with the dip in the value of cryptocurrencies in the past few months, cryptojackers – trojanized coin miners that attackers distribute to use compromised devices’ computing power for their objectives – continue to be widespread. In the past several months, Microsoft Defender Antivirus detected cryptojackers on hundreds of thousands of devices every month. These threats also continue to evolve: recent cryptojackers have become stealthier, leveraging living-off-the-land binaries (LOLBins) to evade detection.
To provide advanced protection against these increasingly complex and evasive threats, Microsoft Defender Antivirus uses various sensors and detection technologies, including its integration with Intel® Threat Detection Technology (TDT), which applies machine learning to low-level CPU telemetry to detect threats even when the malware is obfuscated and can evade security tools.
Using this silicon-based threat detection, Defender analyzes signals from the CPU performance monitoring unit (PMU) to detect malware code execution “fingerprint” at run time and gain unique insights into malware at their final execution point, the CPU. The combined actions of monitoring at the hardware level, analyzing patterns of CPU usage, and using threat intelligence and machine learning at the software level enable the technology to defend against cryptojacking effectively.
In this blog post, we share details from our monitoring and observation of cryptojackers and how the integration of Intel TDT and Microsoft Defender Antivirus detects and blocks this complex threat.
Looking at the current cryptojacker landscape
There are many ways to force a device to mine cryptocurrency without a user’s knowledge or consent. The three most common approaches used by cryptojackers are the following:
- Executable: These are typically potentially unwanted applications (PUAs) or malicious executable files placed on the devices and designed to use system resources to mine cryptocurrencies.
- Fileless: These cryptojackers perform mining in a device’s memory and achieve persistence by misusing legitimate tools and LOLBins.
The executable and browser-based approaches involve malicious code that’s present in either the filesystem or website that can be relatively easily detected and blocked. The fileless approach, on the other hand, misuses local system binaries or preinstalled tools to mine using the device’s memory. This approach allows attackers to achieve their goals without relying on specific code or files. Moreover, the fileless approach enables cryptojackers to be delivered silently and evade detection. These make the fileless approach more attractive to attackers.
While newer cryptojackers use the fileless approach, its engagement of the hardware, which it relies on for its mining algorithm, becomes one of the ways to detect cryptojacking activities.
Misuse of LOLBins in recent cryptojacking campaigns
Through its various sensors and advanced detection methodologies, including its integration with Intel TDT, Microsoft Defender Antivirus sees cryptojackers that take advantage of legitimate system binaries on more than 200,000 devices daily.
Attackers heavily favor the misuse of notepad.exe among several legitimate system tools in observed campaigns.
We analyzed an interesting cryptojacking campaign abusing notepad.exe and several other binaries to carry out its routines. This campaign used an updated version of the cryptojacker known as Mehcrypt. This new version packs all of its routines into one script and connects to a command-and-control (C2) server in the latter part of its attack chain, a significant update from the old version, which ran a script to access its C2 and download additional components that then perform malicious actions.

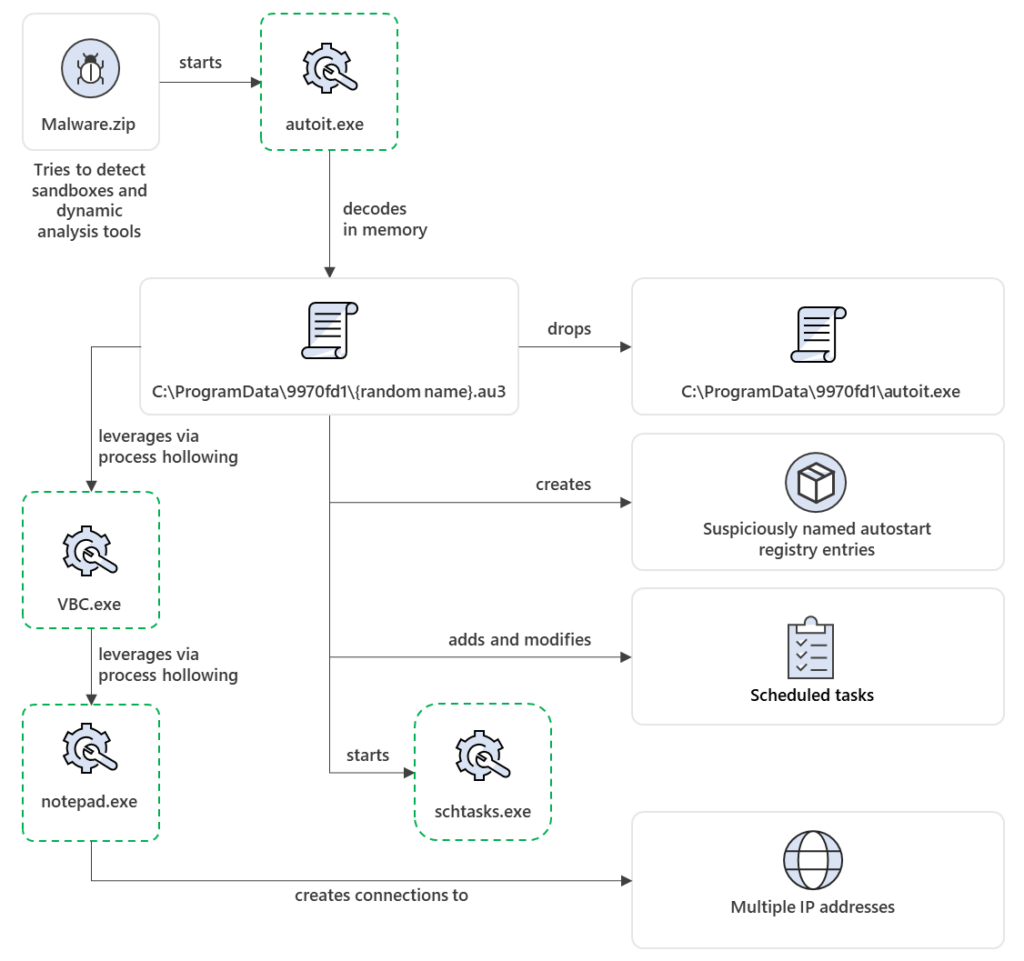

The threat arrives as an archive file containing autoit.exe and a heavily obfuscated, randomly named .au3 script. Opening the archive file launches autoit.exe, whichdecodes the .au3 script in memory. Once running, the script further decodes several layers of obfuscation and loads additional decoded scripts in memory.
The script then copies itself and autoit.exe in a randomly named folder in C:\ProgramData. The script creates a scheduled task to delete the original files and adds autostart registry entries to run the script every time the device starts.
After adding persistence mechanisms, the script then loads malicious code into VBC.exe via process hollowing and connects to a C2 server to listen for commands. Based on the C2 response, the script loads its cryptojacking code into notepad.exe, likewise via process hollowing.

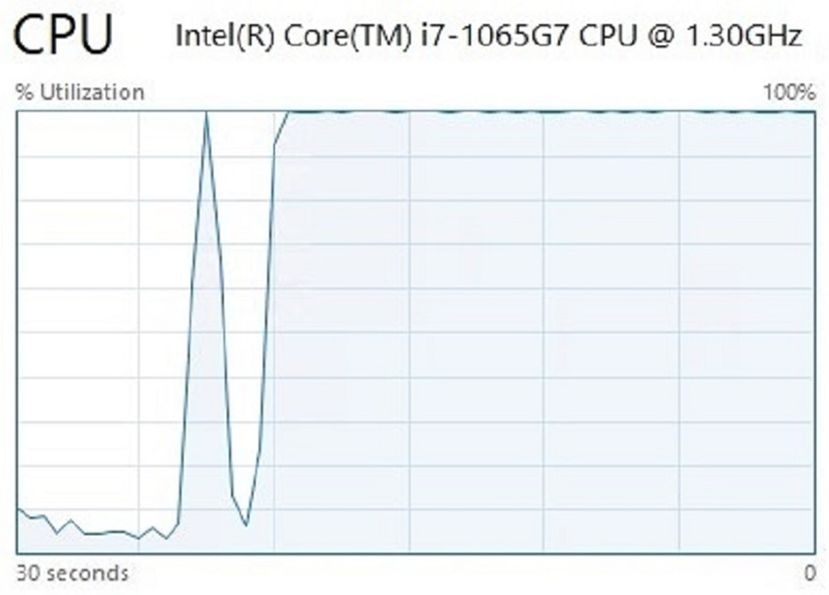

At this point, as the threat starts its cryptojacking operation via malicious code injected into notepad.exe, a huge jump in CPU usage can be observed:
This high CPU usage anomaly is analyzed in real-time by both Intel TDT and Microsoft Defender Antivirus. Based on Intel TDT’s machine learning-based correlation of CPU telemetry and other suspicious activities like process injection into system binaries, Microsoft Defender Antivirus blocks the process execution (Behavior:Win32/CoinMiner.CN!tdt), and Microsoft Defender for Endpoint raises an alert.
Advanced threat detection technology helps stop cryptojacking activities
To detect evasive cryptojackers, Microsoft Defender Antivirus and Intel TDT work together to monitor and correlate hardware and software threat data. Intel TDT leverages signals from the CPU, analyzing these signals to detect patterns modeled after cryptojacking activity using machine learning. Microsoft Defender Antivirus then uses these signals and applies its threat intelligence and machine learning techniques to identify and block the action at the software level.
Intel TDT has added several performance improvements and optimizations, such as offloading the machine learning inference to Intel’s integrated graphics processing unit (GPU) to enable continuous monitoring. This capability is available on Intel Core™ processors and Intel vPro® branded platforms from the 6th generation onwards. By design, Microsoft Defender Antivirus leverages these offloading capabilities where applicable.
In addition to industry partnerships, Microsoft’s consistent monitoring of the threat landscape powers the threat intelligence that feeds into products like Microsoft Defender Antivirus and Microsoft Defender for Endpoint, where knowledge is translated to customer protection in real-time.
Suriyaraj Natarajan, Andrea Lelli, Amitrajit Banerjee
Microsoft 365 Defender Research Team
